Omschrijving

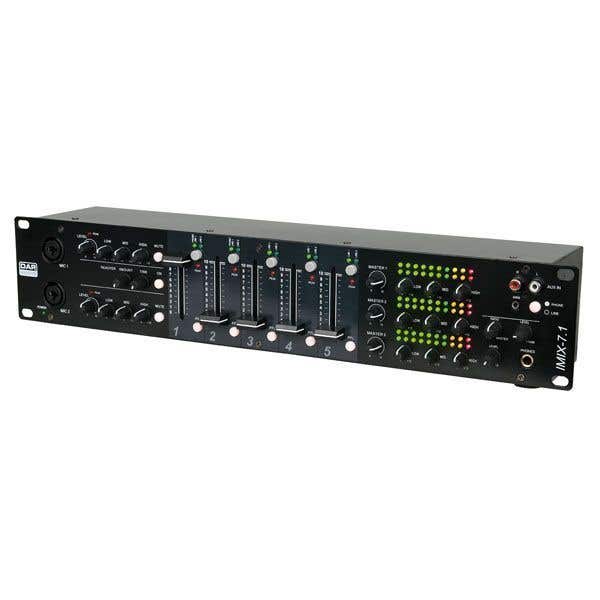

The IMIX-7.1 is a compact installation mixer for many kind of applications. It has a basic design which makes it easy to control. Gain settings are at the backside which prevents wrong use by non-technical users. The 3 balanced master outputs with a low mid and high tone control gives the possibility to set up different sound levels for 3 area's. At the front it has a direct input for 2 microphones, 1 Line source or a Phone/MP3 device with a dedicated impedance switch.
Specifications
- Input channels: 2 x Microphone, combo XLR/Jack
- 11 x Line, RCA
- 2 x Phono, RCA
- 1 x Phone, 3,5mm jack
- Output channels: 2 x Master Balanced, XLR
- 1 x Master output, RCA
- 1 x REC output, RCA
- 1 x Headphones, 6.3mm Jack
- Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
- Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
- Frequency response: 20Hz - 20Khz
- T.H.D.: <0.05%
- Dimensions: 481 x 88 x 95 mm (LxHxD)
- Powersupply: 230V AC, 50Hz
- Powerconsumption: 21Watt
- Weight: 2,8 Kg
| SKU | D2350 |
|---|---|
| Categorie | DJ mixer |
| Merk | Dap-Audio |
| Aantal kanalen | 7 |
| Ingebouwde versterker | Nee |
| EAN Code | 8717748316141 |
